喇叭 FHDSO-C7C0A5-08-R


+
  • IMG_1534(1).jpg
  • IMG_1532(1).jpg
  • IMG_1536(2).jpg

喇叭 FHDSO-C7C0A5-08-R

Parts shall be measured under one condition (temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., atmospheric pressure: 860 ~ 1060hPa), unless standard conditions (temperature: 25±3 ℃, humidity: 60±10%R.H. atmospheric pressure: 860 ~ 1060hPa) are adjusted.

功能:中低频 尺寸:27*20*5.9mm 额定功率:1w 阻抗: 8Ω±15% 谐振频率: 680Hz±20% 频响范围:680Hz-15kHz 灵敏度:82±2dB(0.5m/1w)

Category: Speaker

功能:中低频 尺寸:27*20*5.9mm 额定功率:1w 阻抗: 8Ω±15% 谐振频率: 680Hz±20% 频响范围:680Hz-15kHz 灵敏度:82±2dB(0.5m/1w)
Online message

Keywords: buzzer | horn | materialized film

Product Description

性能参数

1 尺寸 27.3*20.3*7.0mm
2 声压 84±2dB
3 阻抗 8Ω±15%
4 输入电压 1W
5 频率 F0-15KHZ

6

失真 ≤ 7 %Max

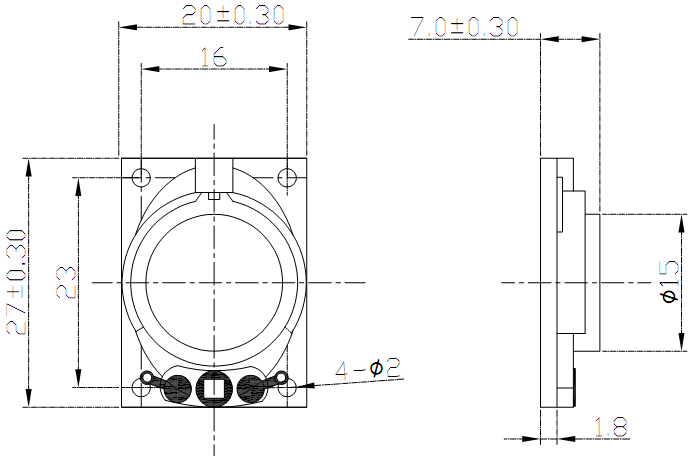

规格尺寸

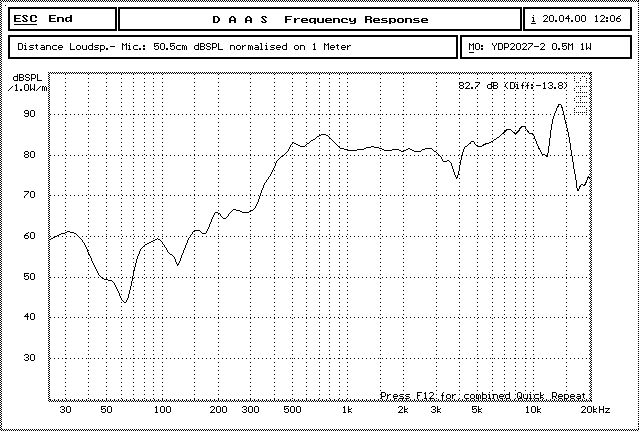

频响曲线
