喇叭 FHDSO-A0C7A7-100-R


+
  • IMG_1479.jpg
  • IMG_1480.jpg
  • IMG_1483.jpg

喇叭 FHDSO-A0C7A7-100-R

Parts shall be measured under one condition (temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., atmospheric pressure: 860 ~ 1060hPa), unless standard conditions (temperature: 25±3 ℃, humidity: 60±10%R.H. atmospheric pressure: 860 ~ 1060hPa) are adjusted.

应用:头戴式耳机等 功能:受话器 尺寸:27*5.3mm 额定功率:0.1w 阻抗: 100Ω±15% 谐振频率: 100Hz±20% 频响范围:100Hz-4kHz 阻抗: 8Ω±15% 谐振频率: 760Hz±20% 频响范围:760Hz-20kHz 灵敏度:79±2dB(0.5m/1w)

Category: Speaker

应用:头戴式耳机等 功能:受话器 尺寸:27*5.3mm 额定功率:0.1w 阻抗: 100Ω±15% 谐振频率: 100Hz±20% 频响范围:100Hz-4kHz 阻抗: 8Ω±15% 谐振频率: 760Hz±20% 频响范围:760Hz-20kHz 灵敏度:79±2dB(0.5m/1w)
Online message

Keywords: buzzer | horn | materialized film

Product Description

规格参数

1 尺寸 Φ27×H7.5
2 声压 115±3 dB
3 阻抗 100±15%Ω
4 输入功率 50mW
5 失真 ≤5%



规格尺寸

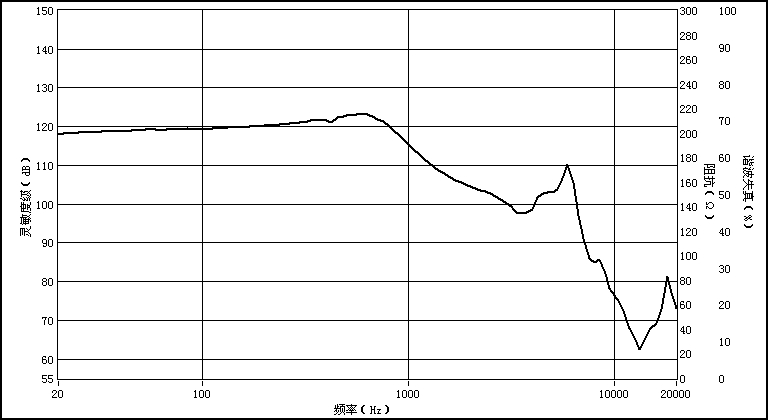

频响曲线
