BP1109S-41

Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.
Code
Affiliate classification
Weight
0.00
Quantity
-
+
没有此类产品
I want to make an inquiry
Booking
Product Detail

1.Technical Parameter

Measuring condition

Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.

1

Resonant Frequency

4100Hz

2

Operating Voltage

120 Vp-p

3

Rated Current

Max.3mA ,at 4.1KHz 50% duty Square Wave 3Vp-p





Max.5mA ,at 4.1KHz 50% duty Square Wave 5Vp-p

4

Sound Output at 10cm

Min 65dB,at 4.1KHz 50% duty Square Wave 3Vp-p





Min 70dB,at 4.1KHz 50% duty Square Wave 5Vp-p

5

Capacitance

12000±30%pF at 1KHz

6

Operating Temperature

-30℃~+70

7

Store Temperature

-40℃~+85

8

Net Weight

Approx 0.2g

9

RoHS

Yes



2.Dimensions          Unit: mm



*Unit: mm; Tolerance: ±0.3mm Except Specified

*Housing Material: Black LCP

*Terminal plate: 2 soldering pads, gold Plating Brass



3.Electrical And Acoustical Measuring Condition.

Recommended Setting

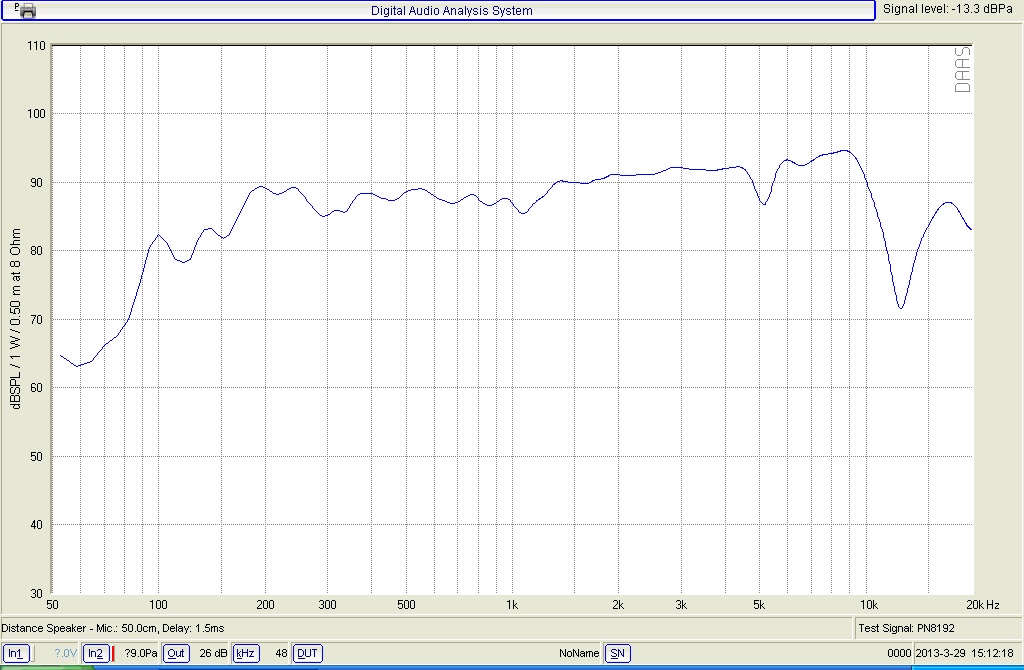

4.Frequency Response

5.Surface mounting condition

5.1 Reflow soldering

Recommendable reflow soldering condition is as follows.





Note: (1) In automated mounting of the SMD sound transducers on PCB, any bending, expanding

and pulling forces or shocks against the SMD sound transducers shall be kept minimum

to prevent them from electrical failures and mechanical damages of the devices.

(2) In the reflow soldering, too high soldering temperatures and too large temperature

      Gradient such as rapid heating or cooling may cause electrical failures and mechanical

damages of the devices.

5.2.Soldering pattern







6.Reliability Test

After any following tests the part shall meet specifications without any degradation in

appearance and performance except SPL. SPL shall not deviate more than -10 dB

from the initial value

6.1 Ordinary Temperature Life Test

The part shall be subjected to 96 hours at 25±10. Input rated voltage

Resonant frequency, 1/2 duty Square wave.

6.2High Temperature Test

The part shall be capable of with standing a storage temperature of +85 for 96 hours.

6.3Low Temperature Test

    The part shall be capable of with standing a storage temperature of -40 for 96 hours.

​​​​​​​6.4Humidity Test

Temperature:+40℃±3℃   Relative Humidity:90%95% Duration: 48 hours

and expose to room temperature for 6 hours

​​​​​​​6.5Temperature Shock Test

Temperature:60/1hour25/3hours-20/1hour25/3hours (1cycle)

Total cycle: 10 cycles

​​​​​​​6.6Drop Test

Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick,

three sides, six plain.)

​​​​​​​6.7Vibration Test

Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

​​​​​​​6.8Reflow Test

Use recommendable reflow soldering condition (as shown in 5.1)

(1) No abnormality should be found after reflow

(2) Good soldering to meet soldering requirements

7.Packing

包装

编带包装:详见图纸要求

外箱料号:F6-005;外箱尺寸35*32*36cm

内盒料号:F6-054;内箱尺寸76*45.5cm

载带料号:F6-S11091

每个载盘用一个大PE袋装好再放入内盒;PE袋料号:F6-607
