Buzzer BP1109S

Parts shall be measured under one condition (temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., atmospheric pressure: 860 ~ 1060hPa), unless standard conditions (temperature: 25±3 ℃, humidity: 60±10%R.H. atmospheric pressure: 860 ~ 1060hPa) are adjusted.

Online message

Keywords: buzzer | horn | materialized film

Product Description

1. Technical Parameter
Measuring condition

Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

1 Resonant Frequency 4100Hz
2 Operating Voltage 1~20 Vp-p
3 Rated Current Max.3mA ,at 4.1KHz 50% duty Square Wave 3Vp-p
Max.5mA ,at 4.1KHz 50% duty Square Wave 5Vp-p
4 Sound Output at 10cm Min 65dB,at 4.1KHz 50% duty Square Wave 3Vp-p
Min 70dB,at 4.1KHz 50% duty Square Wave 5Vp-p
5 Capacitance 12000±30%pF at 1KHz
6 Operating Temperature -30℃~+70℃
7 Store Temperature -40℃~+85℃
8 Net Weight Approx 0.2g
9 RoHS Yes

2. Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.3mm Except Specified
*Housing Material: Black LCP
*Terminal plate: 2 soldering pads, gold Plating Brass

3. Electrical And Acoustical Measuring Condition

Recommended Setting

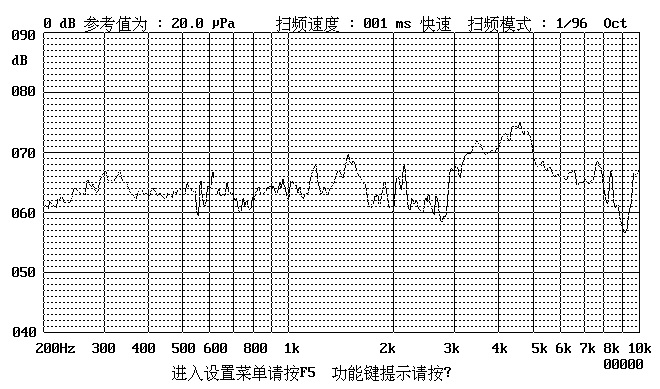

4.Frequency Response

5.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
B )High Temperature Test
The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -40℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:60℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes
h)7.8Reflow Test
Use recommendable reflow soldering condition (as shown in 5.1)
(1) No abnormality should be found after reflow
(2) Good soldering to meet soldering requirements

Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

6. Surface mounting condition

6.1 Reflow soldering
Recommendable reflow soldering condition is as follows.

Note: (1) In automated mounting of the SMD sound transducers on PCB, any bending, expanding
and pulling forces or shocks against the SMD sound transducers shall be kept minimum
to prevent them from electrical failures and mechanical damages of the devices.
(2) In the reflow soldering, too high soldering temperatures and too large temperature
Gradient such as rapid heating or cooling may cause electrical failures and mechanical
damages of the devices.

6.2 Soldering pattern

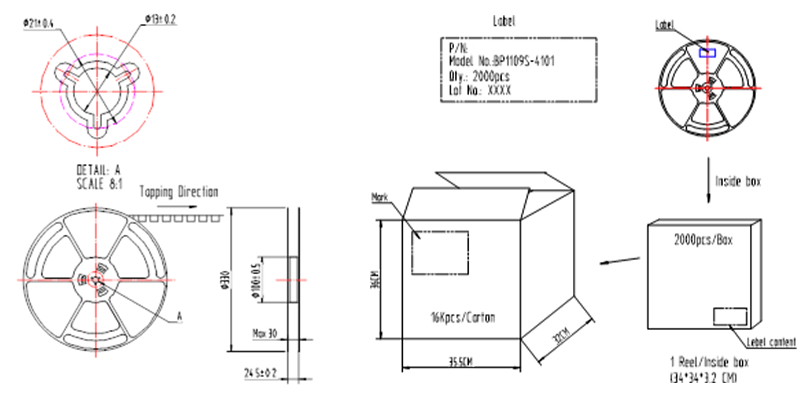

7.Packing

Packaging Requirements

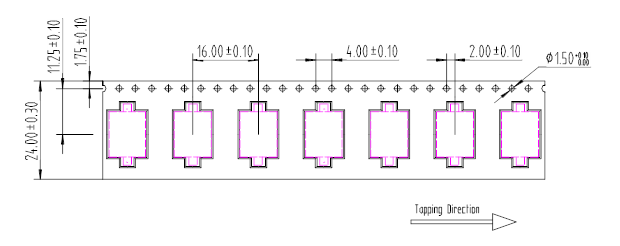

Tape Packaging: for details, please refer to the drawing requirements
outer box item number: F6-005; Outer box size 35*32 * 36cm
inner box item number: F6-054; Inner box size 76 * 45.5cm
carrier tape item number: F6-S11091
Each carrier plate is packed in a large PE bag and then put into the inner box; PE bag item number: F6-607

shipping mark requirements

inner box:

according to customer order

carton:

according to customer order
