Buzzer BPC2495W

Parts shall be measured under one condition (temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., atmospheric pressure: 860 ~ 1060hPa), unless standard conditions (temperature: 25±3 ℃, humidity: 60±10%R.H. atmospheric pressure: 860 ~ 1060hPa) are adjusted.

1. Technical specifications Product test conditions: temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., air pressure: 860 ~ 1060hPa. Standard test conditions: temperature: 25±3 ° C., humidity: 60±10%R.H. Air pressure: 860-1060hPa. 1 rated voltage 12VDC2 working voltage 6-15VDC3 rated current (mA)Max.30mA,at12VDC4 output sound pressure (dB)10cm Min.100dB,at12VDC5 resonance frequency (Hz)3400±300 Hz6 tone Con

Category： Piezoelectric active buzzer

Online message

Keywords: buzzer | horn | materialized film

Product Description

1. Technical Parameter
Measuring condition

Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

1	Rated Voltage	24VDC
2	Operating Voltage	15- 28 VDC
3	Rated Current	Max.30mA, at 24VDC
4	Sound Output at 10cm	Min95dB at 24VDC
5	Resonant Frequency	3500±500Hz
6	Tone	Continuous
7	Operating Temperature	-20 - +70℃
8	Storage Temperature	-30 - +80℃
9	RoHS	Yes
10	Weight	Approx 3 g

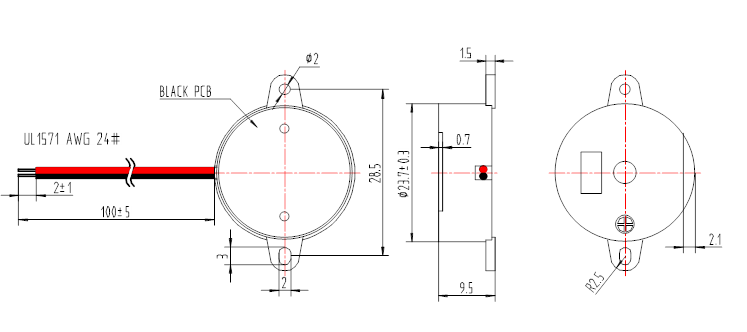

2. Dimensions Unit: mm

*Housing Material: Black ABS

3. Electrical And Acoustical Measuring Condition

Recommended Setting

Recommended Test Circuit

4.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -5dB from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
B )High Temperature Test
The part shall be capable of with standing a storage temperature of +80℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:70℃ /1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test

Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. spl down) may occur if foreign material enter it.

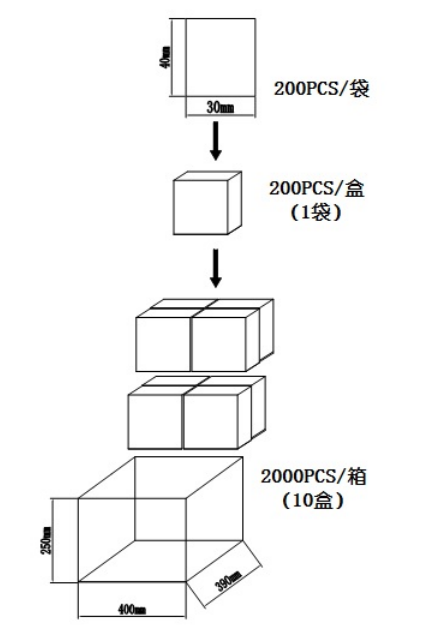

5.Packing

packing requirements

1. plastic bag packing 200 PCS/bag 25 a bundle of plastic bags 30*40cm material number: f6-611
2. inner box 200 PCS/box 63.5*53.5cm item number: F6-051
3. outer box 2000 PCS/box item number: F6-003 50*41*25cm

shipping mark requirements

inner box:

according to customer order

outer box:

by customer order
