喇叭 S40-08

Parts shall be measured under one condition (temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., atmospheric pressure: 860 ~ 1060hPa), unless standard conditions (temperature: 25±3 ℃, humidity: 60±10%R.H. atmospheric pressure: 860 ~ 1060hPa) are adjusted.

Speaker 1DimensionΦ40*H172Net WeightApprox 20g3Impedance8±15%Ωat 2.0KHz,1.0V4RatedInputPower2.0W5MaxInputPower3.0W6LowestResonanceFrequency210Hz±20% at1.0V7AudibleNoiseMustbefreeaudiblenoise100~4kHz,I

Category: Speaker

Speaker 1DimensionΦ40*H172Net WeightApprox 20g3Impedance8±15%Ωat 2.0KHz,1.0V4RatedInputPower2.0W5MaxInputPower3.0W6LowestResonanceFrequency210Hz±20% at1.0V7AudibleNoiseMustbefreeaudiblenoise100~4kHz,I
Online message

Keywords: buzzer | horn | materialized film

Product Description

Speaker



1

Dimension

Φ40*H17

2

Net Weight

Approx 20g

3

Impedance

8±15%Ω at 2.0KHz,1.0V

4

Rated Input Power

2.0W

5

Max Input Power

3.0W

6

Lowest Resonance Frequency

210Hz±20% at 1.0V

7

Audible Noise

Must be free audible noise 100~4kHz, Input level up to 4.00Vrms.

8

Sound Pressure Level

89±3dB/1W 0.5M at 1.0,1.2,1.5,2.0KHz Average

9

Distortion

Less then 10 % at 1kHz 0.1W.

10

Operating Temperature

-20℃~+70℃

11

Store Temperature

-30℃~+80℃

2. D  2. Dimensions

Unit: mm



*Unit: mm; Tolerance: ±0.5mm Except Specified



3.Reliability Test 可靠性測試

   3.1 LOAD TEST:

     White noise (EIA filter) for 96 hours @ 2.0W input power.

  3.2 HUMIDITY TEST:

     Temperature:     +40±2℃            Relative Humidity:  90%~95%

      Duration :     16 hours

  3.3 HIGH TEMPERATURE TEST:

      High Temperature:      +70℃             Duration:     16 hours

3.4 LOW TEMPERATURE TEST:

Low Temperature:       -30℃             Duration:     16 hours

3.5 DROP TEST:

    Height:      1.5M

      Cycle:       10 cycles(Onto the concrete board)

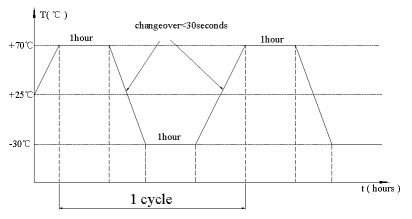

3.6 HEAT SHOCK TEST:

   High temperature :        +70℃

     Low temperature :        -30℃

     Changeover time:       <30secends

     Duration        :       1 hour

     Cycle          :          5

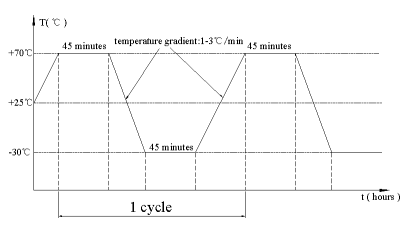

3.7 TEMPERATURE CYCLE TEST:

   Temperature :          -30℃   +70℃

     Duration    :          45 minutes

     Temperature gradient:    1~3℃/minutes

     Cycle:                 5



All these tests above should be measured after leaving normal temperature for 1hrs.

Sensitivity difference at 1kHz shall be within ±3dB from initial value after test.

以上試驗完畢後必須於常溫狀態下放置1小時再進行檢測。

測試音壓級變化要求1kHz時必須在±3dB以內。
