S1609

1.SPECIFICATIONSpeaker1DimensionΦ15*11(本体)2NetWeightApprox1.5g3Impedance8±15%Ω4RatedInputPower0.5W5MaxInputPower1.0W6LowestResonanceFrequency550±20%Hzinfreeair,800±20%Hz0.5w/10cmtestingin1ccbox7Audibl
Code
Affiliate classification
Weight
0.00
Quantity
-
+
没有此类产品
I want to make an inquiry
Booking
Product Detail

1. SPECIFICATION


Speaker

1 Dimension Φ15*11(本体)
2 Net Weight Approx 1.5g
3 Impedance 8±15% Ω
4 Rated Input Power 0.5W
5 Max Input Power 1.0W
6 Lowest Resonance Frequency 550±20%Hz in free air, 800±20% Hz 0.5w/10cm testing in 1cc box
7 Audible Noise Must be free audible noise 300Hz  10KHz; 2.0Vrms, while testing in 1cc box
8 Sound Pressure Level 82± 3 dB SPL /1V/10CM at 2000Hz,in 1cc box
9 Distortion (Mounted in 1cc measure box and in a baffle) Test at 2Vrms/10cm
10 Operating Temperature -30℃~+70℃
11 Store Temperature

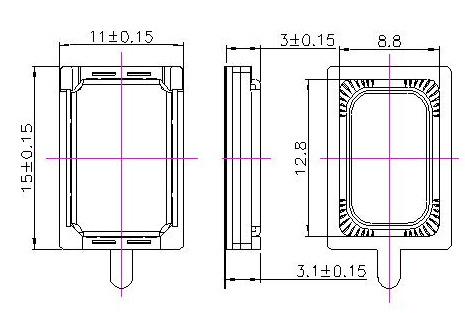

2. Dimensions    Unit: mm

*Unit: mm; Tolerance: ±0.5mm Except Specified



3. Reliability Test
3.1 HIGH TEMPERATURE TEST
High temperature:              +85±2℃
Duration:                      16 hours

3.2 LOW TEMPERATURE TEST
Low temperature :              -40±2℃
Duration:                      16 hours

3.3 HEAT SHOCK TEST
High temperature:              +85±2℃
Low temperature:              -40±2℃
Changeover time:               < 30 seconds
Duration:                     1 hour
Cycle:                        5

3.4 HUMIDITY TEST
Temperature:                  +40±2℃
Relative humidity:              90~95%
Duration:                     16 hours

3.5 TEMPERATURE CYCLE TEST
Temperature:                  -40℃      +20℃        +85℃
Duration:                     30 minutes  15 minutes    30 minutes
Temperature gradient:           1~3℃/min.
Cycle:                        5

3.6 DROP TEST
Free drop a unit to the surface of 10mm thick board
Height:                       100cm
Cycle:                        6 (1 each plain)   onto the concrete board

3.7 Load test
White Noise.:20~20kHz Rated Power: 0.5W  24Hours in 1cc box

All these tests above should be measured after leaving normal temperature for 1hrs.
Sensitivity difference at 1kHz shall be within ±3dB from initial value after test.

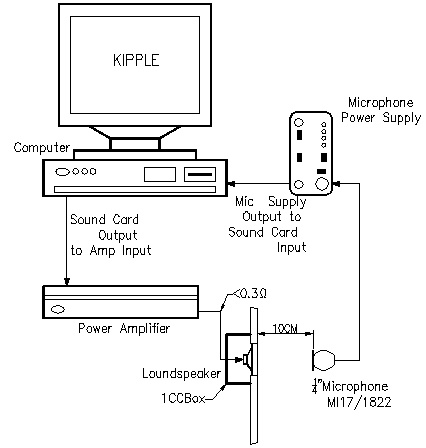

4.MEASURING METHOD(SPEAKER MODE)

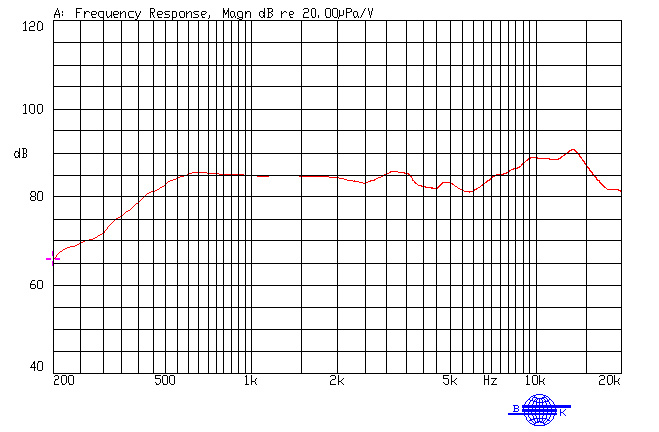

5.Frequency Response

SPEAKER DISTORTION CURVE

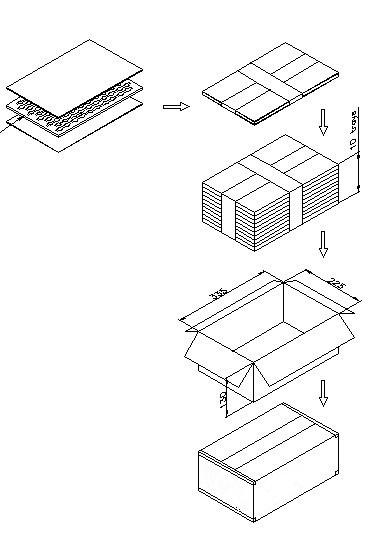

6.PACKING


100pcs of speaker in each tray
20 trays in one carton
Total:2500 pcs / 1 carton
Gross Weight:4.5KGS
Net Weight: 3.0KGS
