Buzzer BP1360C-5.0

Parts shall be measured under one condition (temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., atmospheric pressure: 860 ~ 1060hPa), unless standard conditions (temperature: 25±3 ℃, humidity: 60±10%R.H. atmospheric pressure: 860 ~ 1060hPa) are adjusted.

Online message

Keywords: buzzer | horn | materialized film

Product Description

1. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.


Store Temperature Net Weight


Resonant Frequency



Operating Voltage

3~20 Vp-p


Rated Current

Max.3mA , At 4KHz 50% duty Square Wave 5Vp-p


Sound Output at 10cm

Min.80dB, At 4KHz 50% duty Square Wave 5Vp-p



12000±30% pF At 1KHz


Operating Temperature



Store Temperature



Net Weight

Approx 0.75g

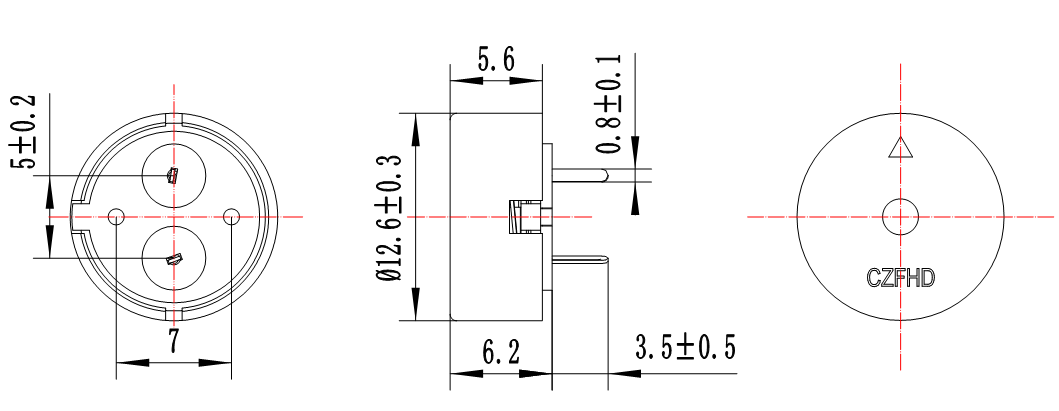

Dimensions Unit: mm


* Unit: mm; Tolerance: ± 0.5mm Except Specified

* Housing Material: black PBT


3. Electrical And Acoustical Measuring Condition


Recommended Setting



4.Frequency Response

10Vp-p 50% duty Square wave,10cm


6.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -5 dB from the initial value

a)Ordinary Temperature Life Test The part shall be subjected to 96 hours at 25±10 ℃. frequency voltage Resonant, 1/2 duty Square wave.

B) High Temperature Test The part shall be capable of with standing a storage temperature of +85 ℃ for 96 hours.

c)Low Temperature Test The part shall be capable of with standing a storage temperature of -30 ℃ for 96 hours.

d)Humidity Test Temperature:+40 ℃ 3 ℃ Relative Humidity:90% ~ 95% Duration: 48 hours and exposed to room temperature for 6 hours

e)Temperature Shock Test Temperature:60 ℃/1hour → 25 ℃/3hours →-20 ℃/1hour → 25 ℃/3hours (1cycle)
Total cycle: 10 cycles

f)Drop Test Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)

g)Vibration Test Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axis


As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. the functional degradation (e.g. spl down) may occur if foreign material enter it.
