1. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

2. Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.5mm Except Specified
*Housing Material: Black PBT

4.Frequency Response

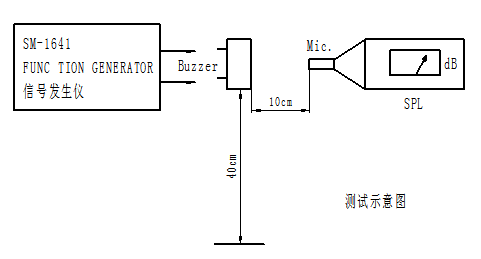

3 Vp-p 50% duty Square wave,10cm

5.Reliability Test
After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -5 dB from the initial value
5.1Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
5.2High Temperature Test
The part shall be capable of with standing a storage temperature of +80℃ for 96 hours.
5.3 Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96 hours.
5.4Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours
and expose to room temperature for 6 hours
5.5Temperature Shock Test
Temperature:60 ℃/1hour → 25 ℃/3hours →-20 ℃/1hour → 25 ℃/3hours (1cycle)
Total cycle
5.6 thathrove# Standard, 75 thathrove
, six plain.)
5.7Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

Note:
As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. the functional degradation (e.g. spl down) may occur if foreign material enter it.

6.Packing

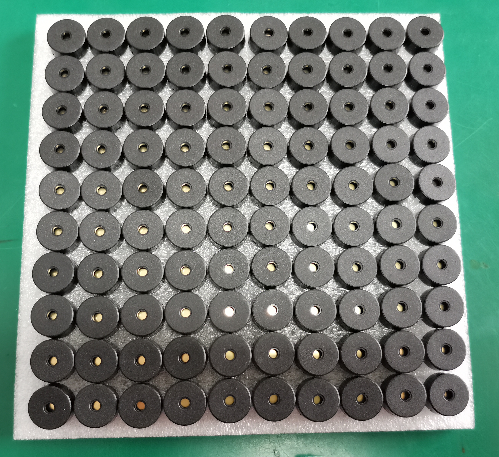

8.1 pearl cotton board packaging, products arranged neatly, 10PCS per row, each column of 10PCS

8.2 10 plates are put into the inner box, 1000 PCS/box

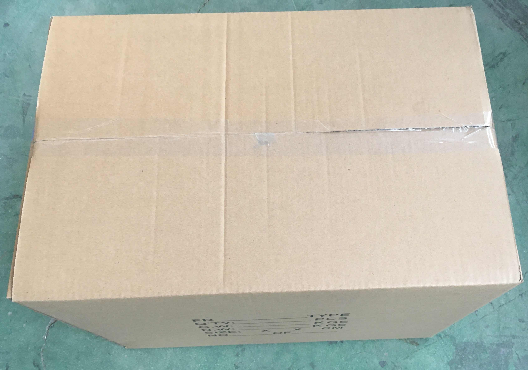

8.3 four boxes are put into the outer box, 4000 PCS/box
