1. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

1	Resonant Frequency	2000Hz
2	Operating Voltage	3 ~30 V p -p
3	Rated Current	Max. 5 mA , A t 2 K Hz 50% duty Square Wave 12 V p -p
4	Sound Output at 10cm	Min. 85 dB , A t 2 K Hz 50% duty Square Wave 12 V p -p
5	Capacitance	20000 ±30% pF At 120KHz
6	Operating Temperature	-20 ℃~ +70 ℃
7	Store Temperature	-40 ℃~ +85 ℃
8	Net Weight	Approx 3g
9	RoHS	Yes

2. Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.5mm Except Specified
*Housing Material: Black PBT

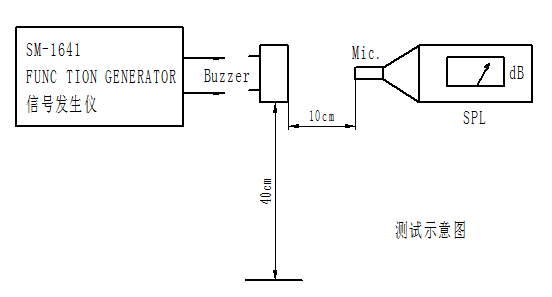

3. Electrical And Acoustical Measuring Condition

Recommended Setting

4.Frequency Response

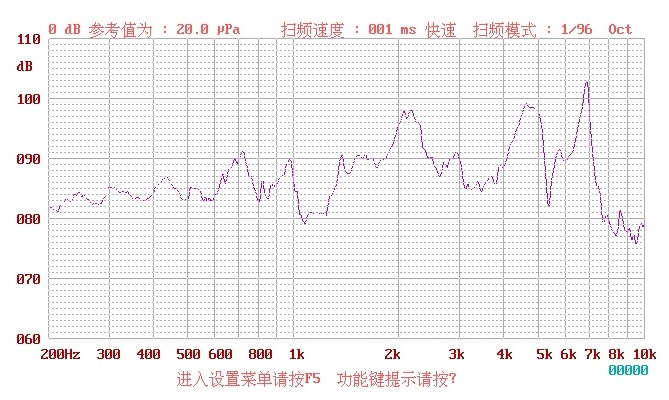

12Vp-p 50% duty Square wave,10cm

5.Reliability Test
After any following tests the part shall meet specifications without any degradation in
appearance and performance except SPL. SPL shall not deviate more than -5 dB
from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage
Resonant frequency, 1/2 duty Square wave.
B )High Temperature Test
The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.
c) Low Temperature Test
The part shall be capable of with standing a storage temperature of -40 ℃ for 96 hours.
d)Humidity Test
Temperature:+40 ℃ 3 ℃ Relative Humidity:90% ~ 95% Duration: 48 hours
and expend to room temperature for 6 hours
e)Temperature Shock Test
Temperature:60 ℃/1hour → 25 ℃/3hours →-20 ℃/1hour → 25 ℃/3hours (1cycle)
Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm Thick,
# Threasides,# Six# Test 246: Vibration): 1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axis
Note:
As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. the functional degradation (e.g. spl down) may occur if foreign material enter it.

6.Packing

packing requirements 3. Outer box 5040 PCS/box outer box 52*35 * 39cm 12 box item number: F6-X-025 mark requirements

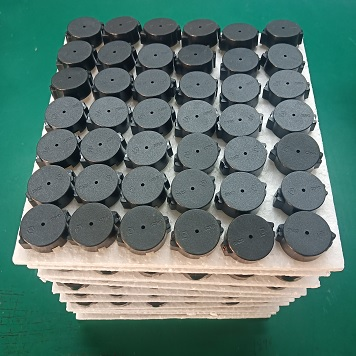

1. foam board 42PCS/sheet number: f6-G-016 2. Inner box 420 PCS/box (10 plates/box) item number: F6-H-014	Remarks: 10 plates are placed in each box, and an empty foam board is placed on it, bagging and tightening
inner box:	according to customer order outer box:	according to customer order

7.1 foam board: 15.3*15.3 * 0.5cm 42 pcs/plate

7.2 inner box: 16*16 * 18cm 420 PCS/box

7.3 outer box: 52*35*39 12 boxes 5040 PCS/box
