Buzzer BP4014W

Parts shall be measured under one condition (temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., atmospheric pressure: 860 ~ 1060hPa), unless standard conditions (temperature: 25±3 ℃, humidity: 60±10%R.H. atmospheric pressure: 860 ~ 1060hPa) are adjusted.

Online message

Keywords: buzzer | horn | materialized film

Product Description

. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5~35 ℃, Humidity: 45% ~ 85% r. h., Atmospheric pressure: 860 ~ 1060hPa) without the standard condition (Temperature: 25±3 ℃, Humidity: 60±10% r. h. Atmospheric pressure: 860 ~ 1060hPa) is regulated to measure.
product testing conditions: temperature: 5~35 ℃, humidity: 45% ~ 85% r. h, air pressure: 860 ~ 1060hPa.
Standard Test Conditions: Temperature: 25±3°C, Humidity: 60±10%R.H. Air Pressure: 860-1060hPa.

1

Resonant Frequency resonant frequency

1 7 50±500Hz

2

Operating Voltage operating voltage

1 ~25 V p -p

3

Rated Current Rated Current

Max. 2 5 mA, at 1 7 50Hz 50% duty Square Wave 12Vp-p

4

Sound Output at 10cm Output Sound Pressure

Min. 9 0dB, at 1 7 50Hz 50% duty square wave 12vp-p

5

Operating Temperature operating temperature

-40±85

6

Store Temperature storage temperature

-40±85 ℃

7

Net Weight

Approx 16.5g

8

RoHS

Yes

2. Dimensions Unit: mm Tolerance: ±0. 5 mm Except Specified

* Housing Material: PPO
Lead Wire: UL1007 22# Black & Red

3. Electrical And Acoustical Measuring Condition (electrical performance test conditions)

Recommended Setting (test device)

4.Frequency Response (frequency response curve)


12Vp-p 50% duty square wave 10cm

6.Packing

packaging requirements

1.1 PCS/40PCS/plastic bag material number: f6-611
2. Inner box 40 PCS/box material number: F6-051
3. Outer box 8 boxes 320 PCS/box material number: F6-007

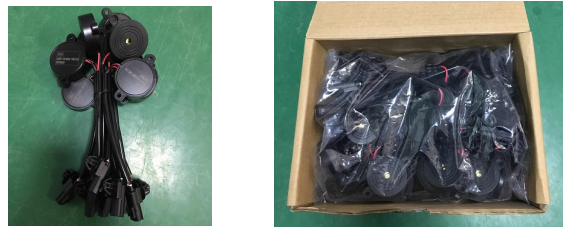

6.1 plastic bag, 10 pcs/40 PCS/bag packed and put into inner box

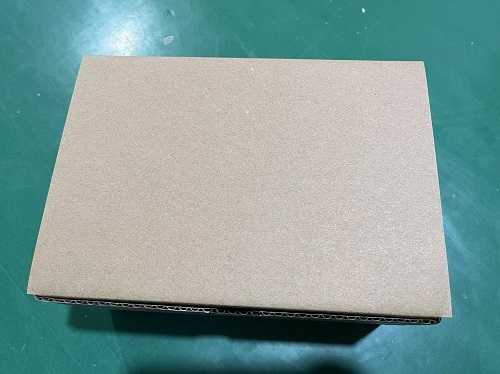

6.2 40 PCS/box, after installation, as shown in the figure, label

6.3 8 boxes/box 320 PCS/box

on the upper right corner of the box
