. Technical Parameter

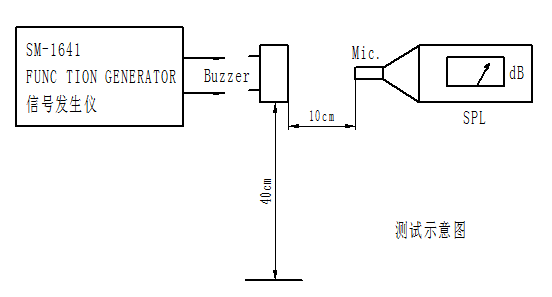

Measuring condition
Part shall be measured under a condition (Temperature: 5~35 ℃, Humidity: 45% ~ 85% r. h., Atmospheric pressure: 860 ~ 1060hPa) without the standard condition (Temperature: 25±3 ℃, Humidity: 60±10% r. h. Atmospheric pressure: 860 ~ 1060hPa) is regulated to measure.

2. Dimensions Unit: mm Tolerance: ±0. 5 mm Except Specified

* Housing Material: black PPO

3, Reliability Test
After any following tests the part shall meet specifications without any degradation in
appearance and performance except SPL. SPL shall not deviate more than -10 dB
from the initial value
3.1Ordinary Temperature Life Test
The part shall be 25±10 subjected
voltage Input frequency, 1/2 duty square wave.
3.2High Temperature Test
The part shall be capable of with standing a storage temperature of +85 ℃ for 96 hours.
3.3Low Temperature Test
The part shall be capable of with standing a storage temperature of -40 ℃ for 96 hours.
3.4 ℃ +40 ℃
Temperature: Humidity:90% ~ 95% Duration: 48 hours
and expend to room temperature for 6 hours
3.5Temperature Shock Test
Temperature:70 ℃/1 hour→ 25 ℃/3 hour→ -30 ℃/1 hour→ 25 ℃/3hours (1cycle)
Total cycle: 10 cycles
3.6Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick,
three sides, six plain.)
3.7Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes

Note:
As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

5.Frequency Response


12Vp-p 50% duty Square wave 10cm
