FHDSP13A

Parts shall be measured under one condition (temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., atmospheric pressure: 860 ~ 1060hPa), unless standard conditions (temperature: 25±3 ℃, humidity: 60±10%R.H. atmospheric pressure: 860 ~ 1060hPa) are adjusted.

Category： Mylar Horn

Online message

Keywords: buzzer | horn | materialized film

Product Description

1.SPECIFICATION
Speaker

1	Dimension	φ 13 * H 4.2
2	Impedance	32Ohm 20% at 1.0KHz
3	Rated Input Power	0.5W
4	Max Input Power	1.0W
5	Lowest Resonance Frequency	600 20% Hz
6	Audible Noise	The input power shall be set at rated noise power(0.5W). Using an audio oscillator sweep from F0 to 10KHZ in free air. There shall be no buzzes,rattles,nor spurious noises.

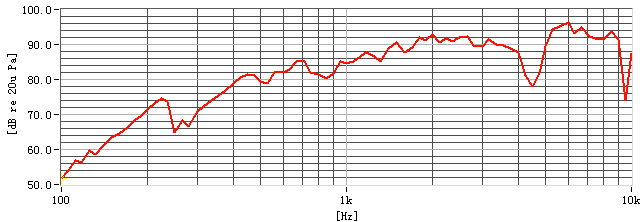

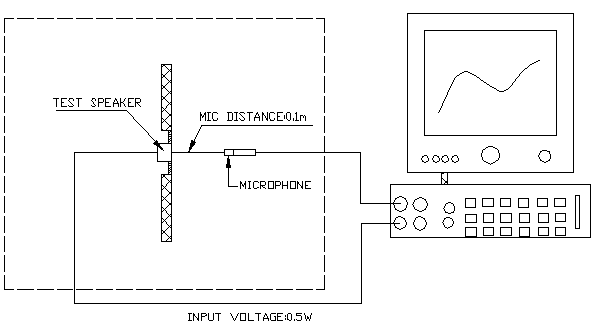

	Sound Pressure Level	88±3dB SPL(0.1m,0.5W) at1.0,1.2,1.5 2.0KHz (0dB SPL = 20μPa)
8	Distortion	Less Exceeded ≤ 10% at2.0KHz
9	Operating Temperature	-30 ℃ to +70 ℃
10	Store Temperature	-40 ℃ to +80 ℃

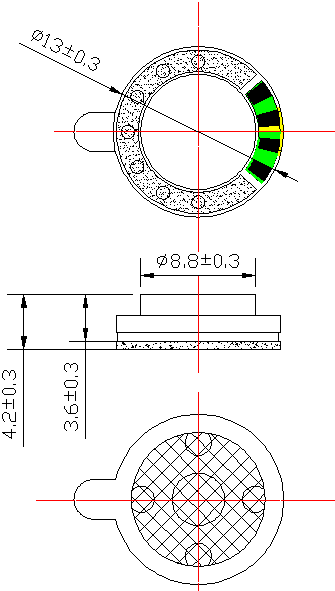

Dimensions

3.Reliability Test Reliability Test

3.1	High Temperature Test	High Temperature: +80 ℃ 5 ℃ Duration: 96 hours
3.2	Low Temperature Test	Low Temperature: -40 ℃ 5 ℃ Duration: 96 hours
3.3	Humidity Test	Temperature: +40 ℃ 5 ℃ Relative humidity: 90% ~ 95% RH Duration: 96 hours
3.4	Vibration Test	Vibration: 10Hz ~ 55Hz Amplitude: 1.5mm or acceleration : 50m/s2 Duration : 2 h per axis = 10 cycles ; 3 axis
3.5	Temperature Cycle Test	Temperature: -40 ℃ +80 ℃ Duration : 2 hours 2 hours Cycle: 5 Cycle
3.6	Drop Test (under the unit)	Height: 1.0m Cycle: 10 Cycle
3. 7	Load Test	Noise: White noise Power: 0.5W Duration: 96 hours and satisfy the test listed on item 05,08,14.
