BP1440S
BP1440S

BP1440S

Model NO.
BP1440S
Quantity:
1,Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H.,
Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3,
Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.

1Resonant Frequency4000Hz
2Operating Voltage120 Vp-p
3Rated CurrentMax.3mA ,at 4KHz 50% duty Square Wave 5Vp-p
4Sound Output at 10cmMin. 85dB,at 4KHz 50% duty Square Wave 5Vp-p
5Capacitance15000±30%pF at 1KHz
6Operating Temperature-30℃~+70
7Store Temperature-40+85
8Net WeightApprox 0.7g
9RoHSYes

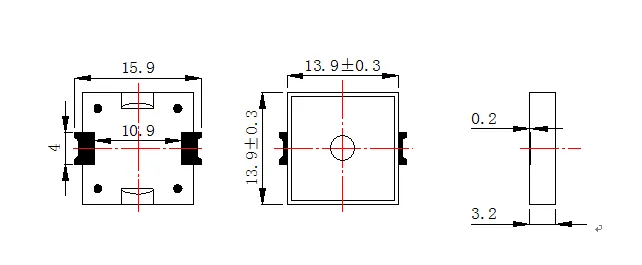

2,Dimensions
Unit: mm
*Unit: mm; Tolerance: ±0.3mmExcept Specified
*Housing Material: Black PPS
