Model NO.
BMC9055
Quantity:
1,Technical Parameter Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Rated Voltage5 VDC
2Operating Voltage3-6VDC
3Rated CurrentMax.30mA, at 5VDC
4Sound Output at 10cmMin.85dB, at 5VDC
5Resonant Frequency2700±300 Hz
6ToneContinuous
7Operating Temperature-20 - +70
8Storage Temperature-30 - +80
9RoHSYes
10WeightApprox0.7g

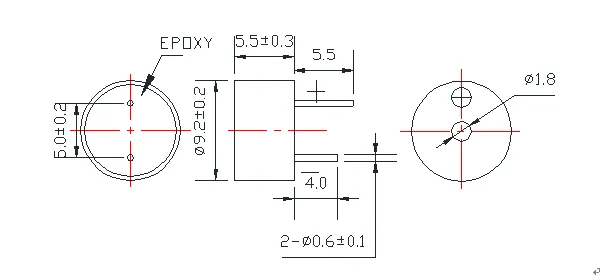

2, DimensionsUnit: mm
*Housing Material: Black PBT
Tolerance:±0.5mm Except Specified
