Model NO.
BMC1295
Quantity:
1,Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H.,
Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3,
Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Rated Voltage5VDC
2Operating Voltage3-8VDC
3Rated CurrentMax.30mA, at 5VDC
4Sound Output at 10cmMin.85dB, at 5VDC
5Resonant Frequency2300±300 Hz
6ToneContinuous
7Operating Temperature-20- +70
8Storage Temperature-30 - +80
9RoHSYes
10WeightApprox1.7g

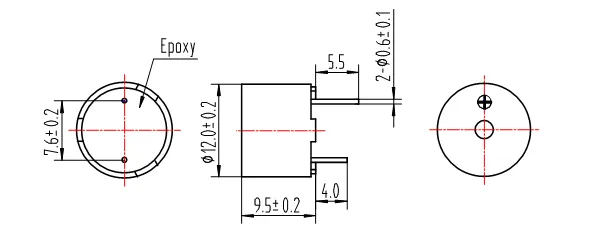

2,DimensionsUnit: mm
*Housing Material: Black PBT
Tolerance:±0.5mm Except Specified
