BPC3215W
BPC3215W
BPC3215W

BPC3215W

Model NO.
BPC3215W
Quantity:

1.Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Rated Voltage12VDC
2Operating Voltage5– 28VDC
3Rated CurrentMax.30mA, at 12VDC
4Sound Output at 30cmMin.88dB, at 12VDC
5Resonant Frequency3200±500 Hz
6ToneContinuous
7Operating Temperature-20 - +70
8Storage Temperature-30 - +80
9ROHSYes
10WeightApproxg

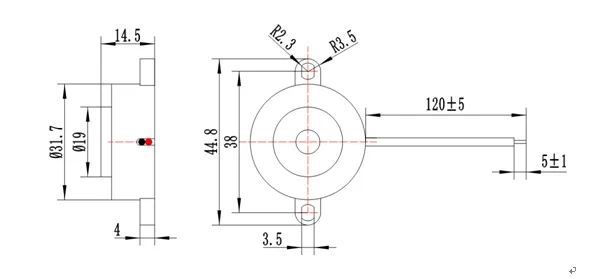

2,Dimensions
Unit: mm Tolerance: ±0.5mm Except Specified
*Housing Material: BLACK ABS
