FHDDMT57A-001
FHDDMT57A-001

FHDDMT57A-001

Model NO.
FHDDMT57A-001
Quantity:
1.SPECIFICATION
Speaker
1DimensionΦ57*H17.5mm
2Impedance4Ohm ± 20% at 1.0KHz
3Rated Input Power2.0W
4Max Input Power3.0W
5Lowest Resonance Frequency500±20%Hz
6Audible NoiseThe input power shall be set at rated noise power(2.0W). Using an audio oscillator sweep from F0 to 4KHZ in free air. There shall be no buzzes,rattles,nor spurious noises.
7Sound Pressure Level94±3dB SPL(1.0m,1.0W) at 520Hz (0dB SPL=20μPa)
8DistortionLess exceed10% At 1KHz,1W
9Operating Temperature-30 to + 55
10Store Temperature-30 to +65

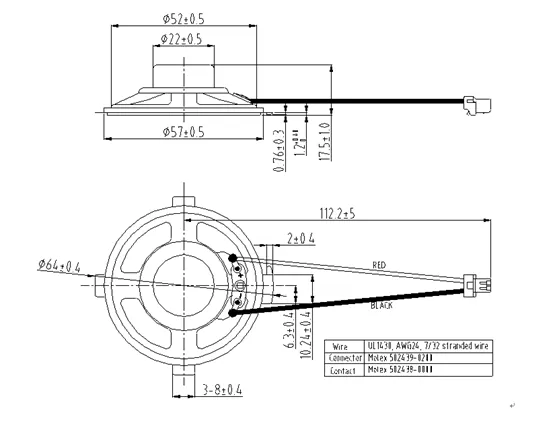

2. Dimensions
