FHDSP50C-001
FHDSP50C-001

FHDSP50C-001

Model NO.
FHDSP50C-001
Quantity:
1.SPECIFICATION
Speaker
1DimensionΦ50*H8.5
2Impedance8Ohm ± 20% at 1.0KHz
3Rated Input Power1.0W
4Max Input Power1.5W
5Lowest Resonance Frequency450±20%Hz
6Audible NoiseThe input power shall be set at rated noise power(1.0W). Using an audio oscillator sweep from F0 to 10KHZ in free air. There shall be no buzzes,rattles,nor spurious noises.
7Sound Pressure Level102±3dB SPL(0.1m,1.0W) at 8.0,1.0,1.2,1.5 KHz (0dB SPL=20μPa)
8DistortionLess exceed10% at1.0KHz
9Operating Temperature-30 to + 70
10Store Temperature-40 to + 80

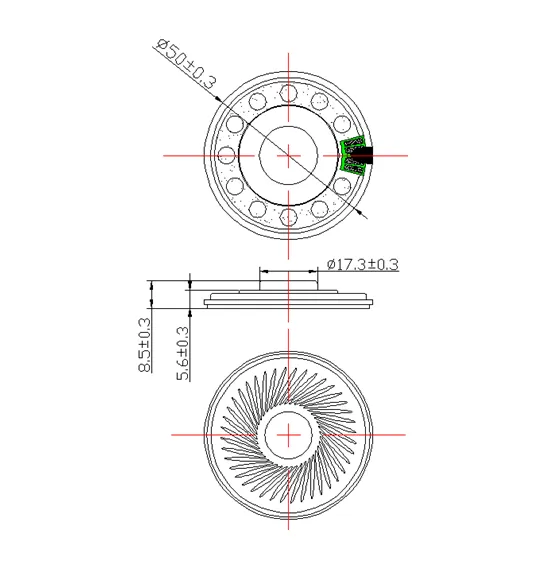

2. Dimensions
