1. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Rated Voltage12Vo-p
2Operating Voltage7-16Vo-p
3Rated CurrentMax.40mA ,at 2048Hz 50% duty Square Wave 12Vo-p
4Sound Output at 10cmMin. 85dB,at 2048Hz 50% duty Square Wave 12Vo-p
5Coil Resistance140±15Ω
6Resonant Frequency2048Hz
7Operating Temperature-20+70
8Store Temperature-30+80
9Net WeightApprox 4.6g
10RoHSYes

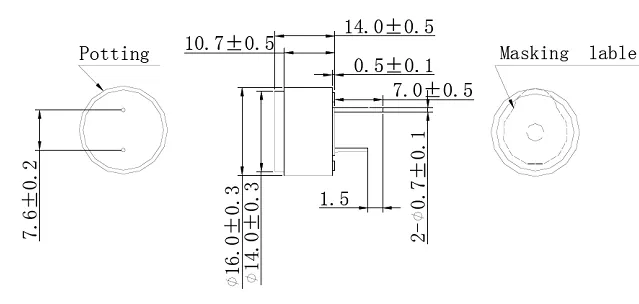

2. DimensionsUnit: mm
*Unit: mm; Tolerance: ±0.5mmExcept Specified
*Housing Material: Black PPO
