BM8530S
BM8530S
BM8530S

BM8530S

Modelo
BM8530S
Quantidade:
1.Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Rated Voltage3.6Vo-p
2Operating Voltage2.54.5Vo-p
3Rated CurrentMax.100mA ,at 2700Hz 50% duty Square Wave 3.6Vo-p
4Sound Output at 10cmMin. 85dB,at 2700Hz 50% duty Square Wave 3.6Vo-p
5Coil Resistance16±
6Resonant Frequency2700Hz
7Operating Temperature-20+70
8Store Temperature-40+85
9Net WeightApprox 0.4g
10RoHSYes

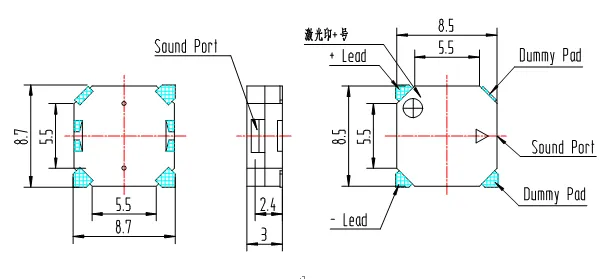

2.DimensionsUnit: mm
*Unit: mm; Tolerance: ±0.3mmExcept Specified
*Housing Material: Black LCP
*Terminal plate: 3 soldering pads, tin Plating Brass
