Modelo
BP1230S
Quantidade:
1.Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Resonant Frequency4000±500Hz
2Operating Voltage125 Vp-p
3Rated CurrentMax.2mA ,at 4KHz 50% duty Square Wave 5Vp-p
4Sound Output at 10cmMin. 80dB,at 4KHz 50% duty Square Wave 5Vp-p
5Capacitance16000±20%pF at 120Hz
6Operating Temperature-30℃~+70
7Store Temperature-40+85
8Net WeightApprox0.5g
9RoHSYes

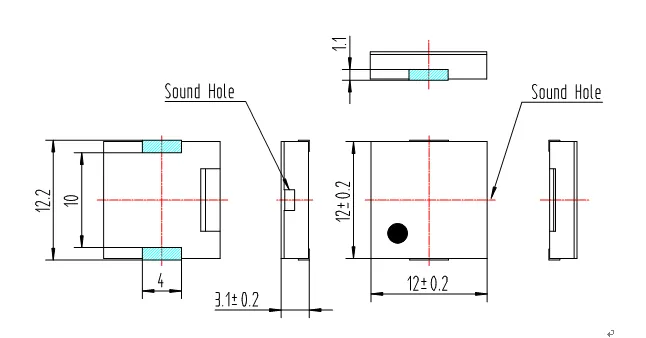

2.DimensionsUnit: mm
*Unit: mm; Tolerance: ±0.3mmExcept Specified
*Housing Material: Black LCP
*Terminal plate: 2 soldering pads, tin Plating Brass
  • BP1230S-40(盖板外镶H3.1).pdf:Download
