BP1470-5.0
BP1470-5.0
BP1470-5.0

BP1470-5.0

Modelo
BP1470-5.0
Quantidade:
1,Technical Parameter Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Resonant Frequency4000Hz
2Operating Voltage320 Vp-p
3Rated CurrentMax.3mA ,At 4KHz 50% duty Square Wave 5Vp-p
4Sound Output at 10cmMin.85dB, At 4KHz 50% duty Square Wave 5Vp-p
5Capacitance12000±30% pF At 1KHz
6Operating Temperature-20℃~+80
7Store Temperature-30+85
8Net WeightApprox 0.9g
9RoHSYes

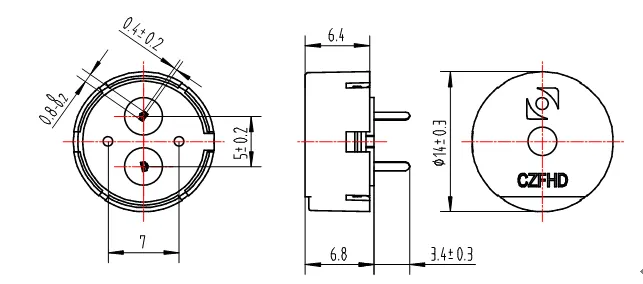

2,Dimensions
Unit: mm
*Unit: mm; Tolerance: ±0.5mmExcept Specified
*Housing Material: Black PBT
