FHDREC40A-001
FHDREC40A-001

FHDREC40A-001

Modelo
FHDREC40A-001
Quantidade:
1.SPECIFICATION
Receiver
1DimensionΦ39.8*H10.6
2Net WeightApprox 12.5g
3Impedance32±15%ohms @1kHz 1Vrms
4Rated Input Power10mW
5Max Input Power20mW
6Resonance Frequency(F0)80Hz±20%
7Sound Pressure Level112±3dB SPL @1KHz (0dB SPL=20μPa)
Input voltage: 179mV (Sine wave) measured with IEC318 coupler.
8DistortionLess exceed5%1mw/1kHz For IEC318 coupler& ear cap.
9Operating Temperature-25℃~+50
10Store Temperature-25℃~+60

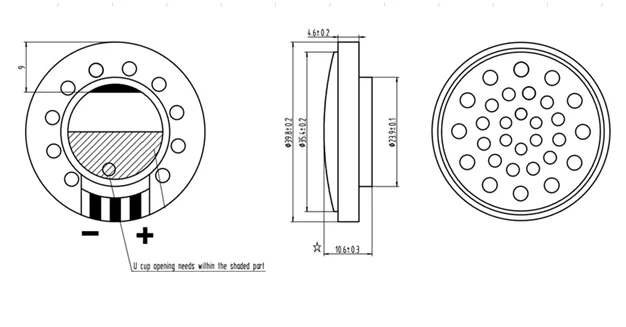

2. Dimensions
*Unit: mm; Tolerance: ±0.5mm Except Specified
