FHDSP18A-001
FHDSP18A-001

FHDSP18A-001

Modelo
FHDSP18A-001
Quantidade:
1.SPECIFICATION
Speaker
1DimensionΦ18*H3.6
2Impedance32Ohm ± 20% at 1.0KHz
3Rated Input Power0.5W
4Max Input Power1.0W
5Lowest Resonance Frequency1000±20%Hz
6Audible NoiseThe input power shall be set at rated noise power(0.5W). Using an audio oscillator sweep from F0 to 10KHZ in free air. There shall be no buzzes,rattles,nor spurious noises.
7Sound Pressure Level94±3dB SPL(0.1m,0.5W) at1.0,1.2,1.5 2.0KHz (0dB SPL=20μPa)
8DistortionLess exceed10% at2.0KHz
9Operating Temperature-30 to + 70
10Store Temperature-40 to + 80

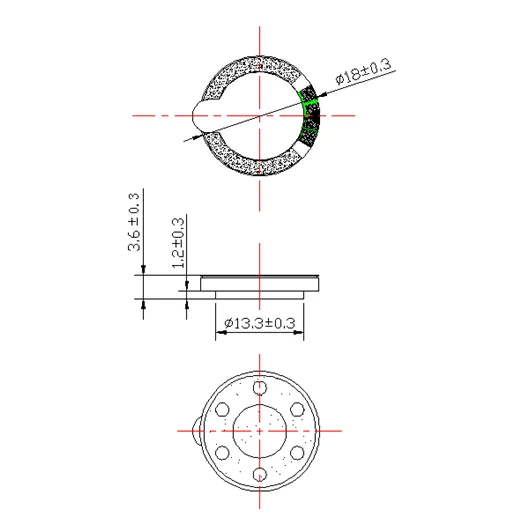

2. Dimensions
