Model
BM2512
Miktar:
1. Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Rated Voltage12Vo-p
2Operating Voltage10-14Vo-p
3Rated CurrentMax.60mA ,at 1000Hz 50% duty Square Wave 12Vo-p
4Sound Output at 10cmMin. 90dB,at 1000Hz 50% duty Square Wave 12Vo-p
5Coil Resistance115±1
6Resonant Frequency1000Hz
7Operating Temperature-20+70
8Store Temperature-30+80
9Net WeightApprox 10g
10RoHSYes

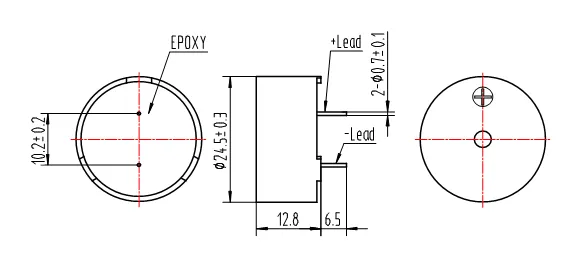

2. DimensionsUnit: mm
*Unit: mm; Tolerance: ±0.5mmExcept Specified
*Housing Material: Black PBT
  • BM2512-1210-115.pdf:İndir
