BP2316
BP2316

BP2316

Model
BP2316
Miktar:
1.Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Resonant Frequency3300Hz
2Operating Voltage130Vp-p
3Rated CurrentMax.5mA ,At 3.3KHz 50% duty Square Wave 12Vp-p
4Sound Output at 10cmMin. 85dB, At 3.3KHz 50% duty Square Wave 12Vp-p
5Capacitance25000±30% pF At 120Hz
6Operating Temperature-20+70
7Store Temperature-30+80
8Net WeightApprox 5g
9RoHSYes

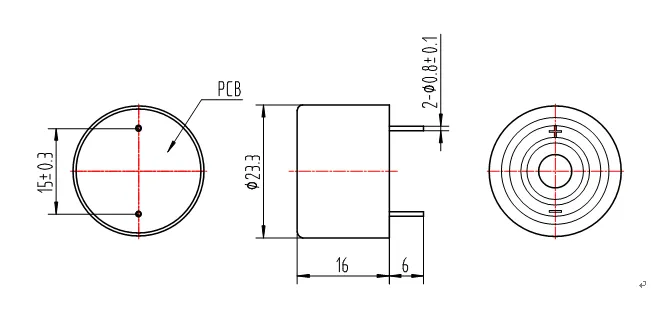

2.DimensionsUnit: mm
*Unit: mm; Tolerance: ±0.5mmExcept Specified
*Housing Material: Black PPO
