Model
BPC3025M
Miktar:
1,Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric pressure: 860 1060hPa) unless the standard condition (Temperature: 25±3, Humidity: 60±10%R.H. Atmospheric pressure: 860 1060hPa) is regulated to measure.
1Rated Voltage12VDC
2Operating Voltage6– 15VDC
3Rated CurrentMax.30mA, at 12VDC
4Sound Output at 10mMin.95dB, at 12VDC
5Resonant Frequency3500±500 Hz
6ToneContinuous
7Operating Temperature-20 - +70
8Storage Temperature-30 - +80
9RoHSYes
10WeightApprox12.0g

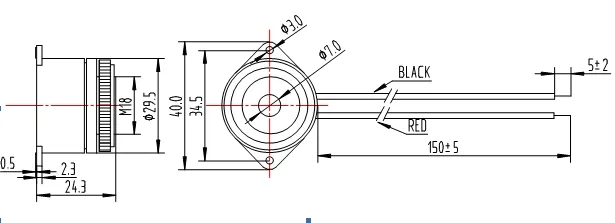

2,Dimensions
Unit: mm Tolerance: ±0.5mm Except Specified
*Housing Material: Black ABS *Lead wire: UL1007 28#
  • BPC3025W150-1235.pdf:İndir
