FHDDMT50C-001
FHDDMT50C-001

FHDDMT50C-001

Model
FHDDMT50C-001
Miktar:
1.SPECIFICATION
Speaker
1DimensionΦ50*H22.5mm
2Impedance4Ohm ± 20% at 1.0KHz
3Rated Input Power2.0W
4Max Input Power2.5W
5Lowest Resonance Frequency150±20%Hz
6Audible NoiseThe input power shall be set at rated noise power(2.0W). Using an audio oscillator sweep from F0 to 20KHZ in free air. There shall be no buzzes,rattles,nor spurious noises.
7Sound Pressure Level97±3dB SPL(0.1m,1.0W) at 1.0KHz (0dB SPL=20μPa)
8DistortionLess exceed10% at 1.0KHz
9Operating Temperature-20 to + 60
10Store Temperature-30 to +70

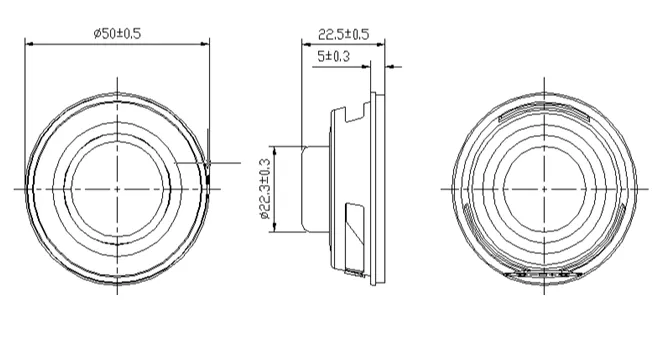

2. Dimensions

  • FHDDMT50C-001规格书.pdf:İndir
