Buzzer BP1230S

Parts shall be measured under one condition (temperature: 5~35 ℃, humidity: 45% ~ 85% R.H., atmospheric pressure: 860 ~ 1060hPa), unless standard conditions (temperature: 25±3 ℃, humidity: 60±10%R.H. atmospheric pressure: 860 ~ 1060hPa) are adjusted.

Specifications: 12*12*3mm
Specifications: 12*12*3mm
Online message

Keywords: buzzer | horn | materialized film

Product Description

1. Technical Parameter
Measuring condition

Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

1 Resonant Frequency 4000±500Hz
2 Operating Voltage 1~25 Vp-p
3 Rated Current Max.2mA ,at 4KHz 50% duty Square Wave 5Vp-p
4 Sound Output at 10cm Min. 80dB,at 4KHz 50% duty Square Wave 5Vp-p
5 Capacitance 16000±20%pF at 120Hz
6 Operating Temperature -30℃~+70℃
7 Store Temperature -40℃~+85℃
8 Net Weight Approx 0.5g
9 RoHS Yes

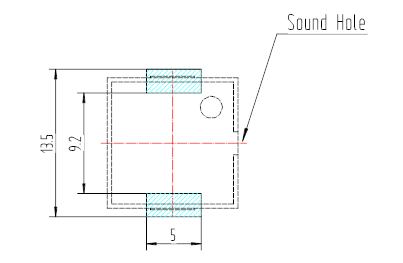

2. Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.3mm Except Specified
*Housing Material: Black LCP
*Terminal plate: 2 soldering pads, tin Plating Brass

3. Electrical And Acoustical Measuring Condition

Recommended Setting

4.Frequency Response

5.Reliability Test

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value
a)Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave.
B )High Temperature Test
The part shall be capable of with standing a storage temperature of +85℃ for 96 hours.
c)Low Temperature Test
The part shall be capable of with standing a storage temperature of -40℃ for 96 hours.
d)Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours and expose to room temperature for 6 hours
e)Temperature Shock Test
Temperature:60℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
f)Drop Test
Standard Packaging From 75cm(Drop on hard wood or board of 5cm thick, three sides, six plain.)
g)Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes
h)Reflow Test
Use recommendable reflow soldering condition (as shown in 5.1)
(1) No abnormality should be found after reflow
(2) Good soldering to meet soldering requirements

Note:

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

6. Surface mounting condition

6.1 Reflow soldering
Recommendable reflow soldering condition is as follows.

Note: (1) In automated mounting of the SMD sound transducers on PCB, any bending, expanding
and pulling forces or socks against the SMD sound transducers shall be kept minimum
to prevent them from electrical failures and mechanical damages of the devices.
(2) In the reflow soldering, too high soldering temperatures and too large temperature
Gradient such as rapid heating or cooling may cause electrical failures and mechanical
damages of the devices.

6.2 Soldering pattern

7.Packing

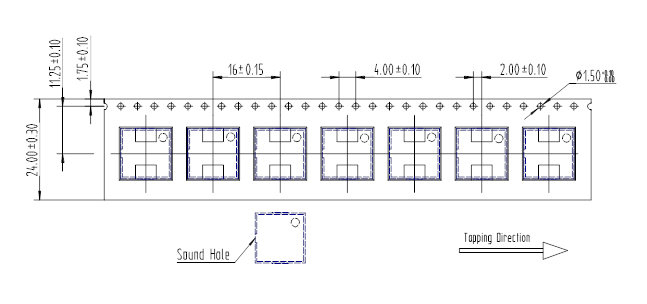

Packaging Requirements

Tape Packaging: 1000PCS/roll tape item number: F6-S12301
outer box item number: F6-005; Outer box size 35*32 * 36cm
inner box item number: F6-054; Inner box size 76 * 45.5cm
Each carrier plate is packed in a large PE bag and then put into the inner box; PE bag item number: F6-610

shipping mark requirements

inner box:

according to customer order

carton:

according to customer order
